Technical Parameters
NO. | Description | Parameters |
1 | Working area | 3000*2000*350mm |
2 | Table size | 3000*2000mm |
3 | Transmission | X/Y rack and pinion, Z ball screw |
4 | Table structure | T Slot |
5 | Spindle power | 4.5KW |
6 | Spindle speed | 24000r/min |
7 | Travelling speed | 10m/min |
8 | Working speed | 8m/min |
9 | Working Delicacy | 0.005mm |
10 | Repositioning Accuracy | 0.05mm |
11 | Driving Motor | Servo brand |
12 | Control System | Special cnc control System |
13 | Command Code | G Code*.u00*.mmg*.plt |
14 | Power(without spindle) | 1500W |
15 | Voltage | AC380/50HZ |
16 | Tilting table and loading wheel | With |
17 | Software | Artcam/Type3,other CAD/CAM |

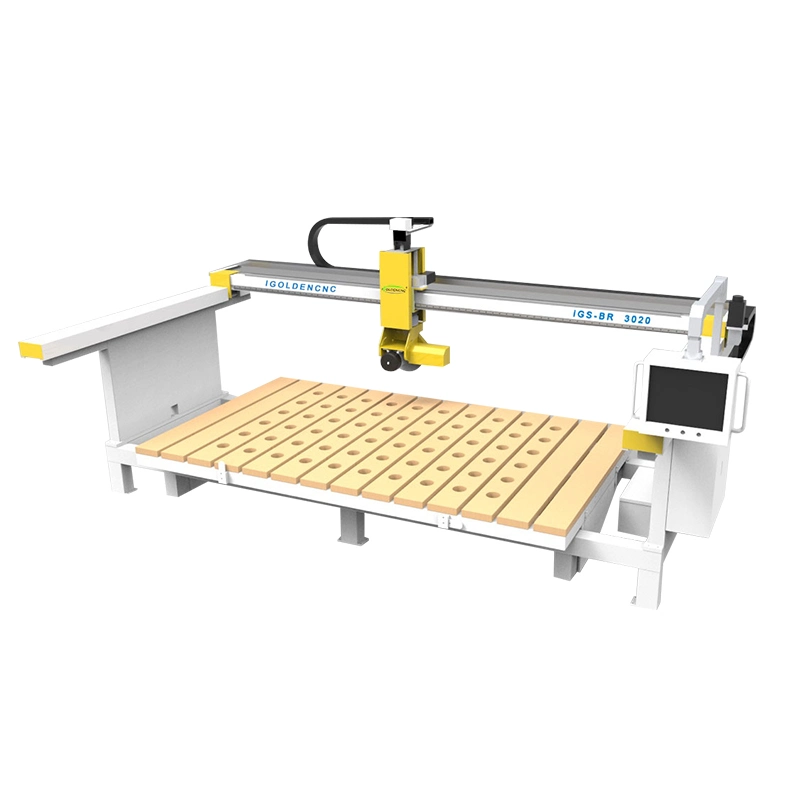

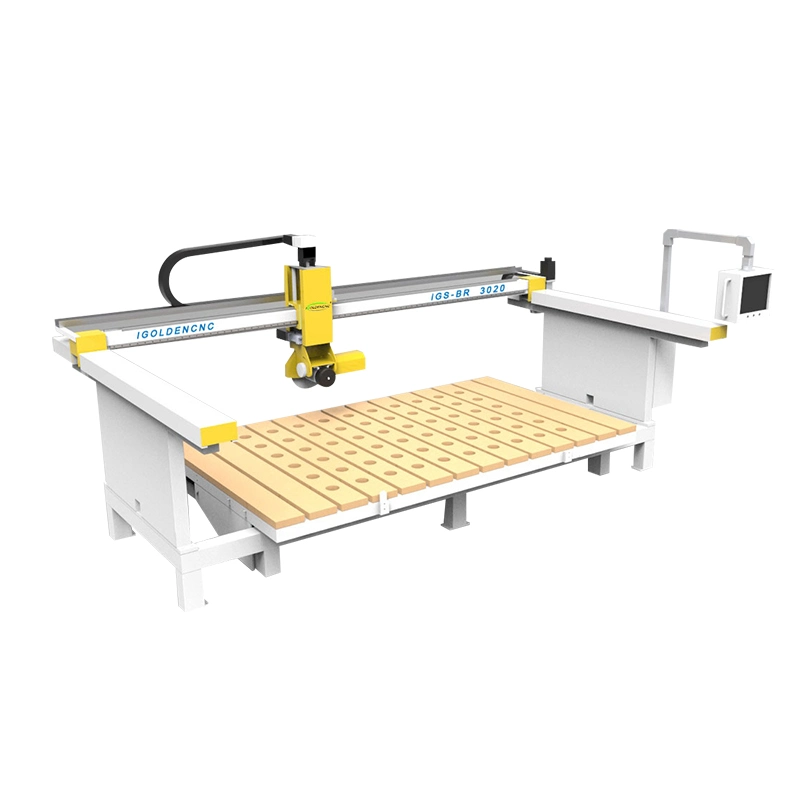

Machine real photos:
Application:This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
